HG 200 KVA

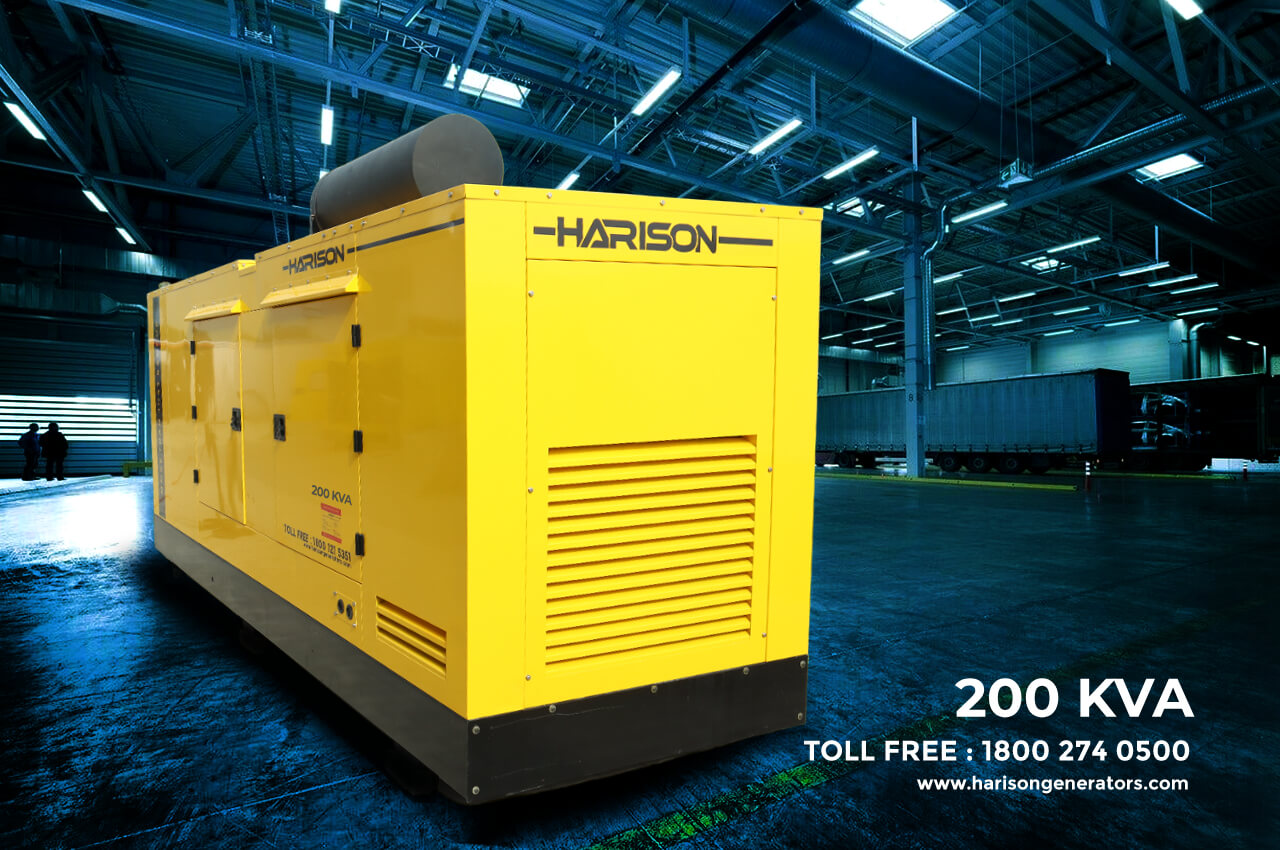

Harison 200 KVA diesel generator has 6 cylinder turbo charged diesel engine. We have selected the technologies that not only perpetuate durability but also enhance on-site support ability and usability. The added benefit to this model of 200 KVA diesel generators lies in its capability to support heavy duty machines in industries and also for high power commercial and office building usages.

Download Brochure

SKU: N/A Category:

Description

TECHNICAL SPECIFICATIONS

GENERATOR SET SPECIFICATIONS
PRIME POWER RATING 200
KW 160
PHASE 3P
RATED CURRENT 278
GENSET MODEL HG200KVA
VOLTAGE 415V (3P)
POWER FACTOR 0.8
FUEL CONSUMPTION @100% 38.8 litres/hour
FUEL CONSUMPTION @75% 29.3 litres/hour
FUEL CONSUMPTION @50% 21.2 litres/hour
BATTERY STARTING VOLTAGE 24 VDC
ENGINE SPECIFICATIONS HARISON ENGINE
ENGINE MODEL HG18R20MN.6DTAA8.9-G32
CAPACITY OF ENGINE 8819 cc
RATED OUTPUT @100% LOAD 279 BHP
NUMBER OF CYLINDERS 6
NO. OF STROKES 4
BORE*STROKE 114*144
RATED SPEED 1500
TYPE OF ASPIRATION Turbo Charged Inter Cooled
COOLING SYSTEM LIQUID COOLED
COOLANT CAPACITY 28 LITERS
TYPE OF GOVERNER ELECTRONIC
BATTERY CAPACITY 120 AH X 2
OVERLOAD CAPACITY 10% Overloading is allowed after 10 Hours of continuous running
OIL SUMP CAPACITY 17.5 LITRES
ALTERNATOR SPECIFICATIONS
MAKE LEROY SOMER / MECCALTE / STAMFORD
RATING 200 KVA
POWER FACTOR 0.8
TYPE Brushless-IP 23
VOLTAGE, VOLTS 415 V (3P)
RATED SPEED 1500 rpm
FREQUENCY, HZ 50 Hz
VOLTAGE REGULATIONS VG 3
CLASS OF INSULATION H-Class
CONTROL PANEL With both Inbuilt ATS/AMF and Manual Options
WAVE FORM DISTORTION/TOTAL HARMONIC DISTORTION No Load<1.5% Non distortion Balanced Linear Load 5%
TELEPHONIC HARMONIC FACTOR <2%
ACOUSTIC SPECIFICATIONS
NOISE LEVEL <75DBA @1meter distance
LENGTH 4300
WIDTH 1400
HEIGHT 1800
FUEL TANK CAPACITY 400 Liters
APPROX NET WEIGHT 2700 KG
